REVIT MODEL NOTES:
Wall Cap: Polycor stone product is applied as a Sweep feature within the Wall System structure using a Revit Profile depicting the width and thickness of the stone cap.

Cornice and Soffit: Polycor stone product is applied as a Wall Sweep Family to a wall. A Revit Profile is used to represent the profile of the cornice or soffit.

Wall Base: Polycor stone product is applied as a Sweep feature within the Wall System structure using a Revit Profile depicting the height and thickness of the wall base.

REVIT MODEL NOTES:

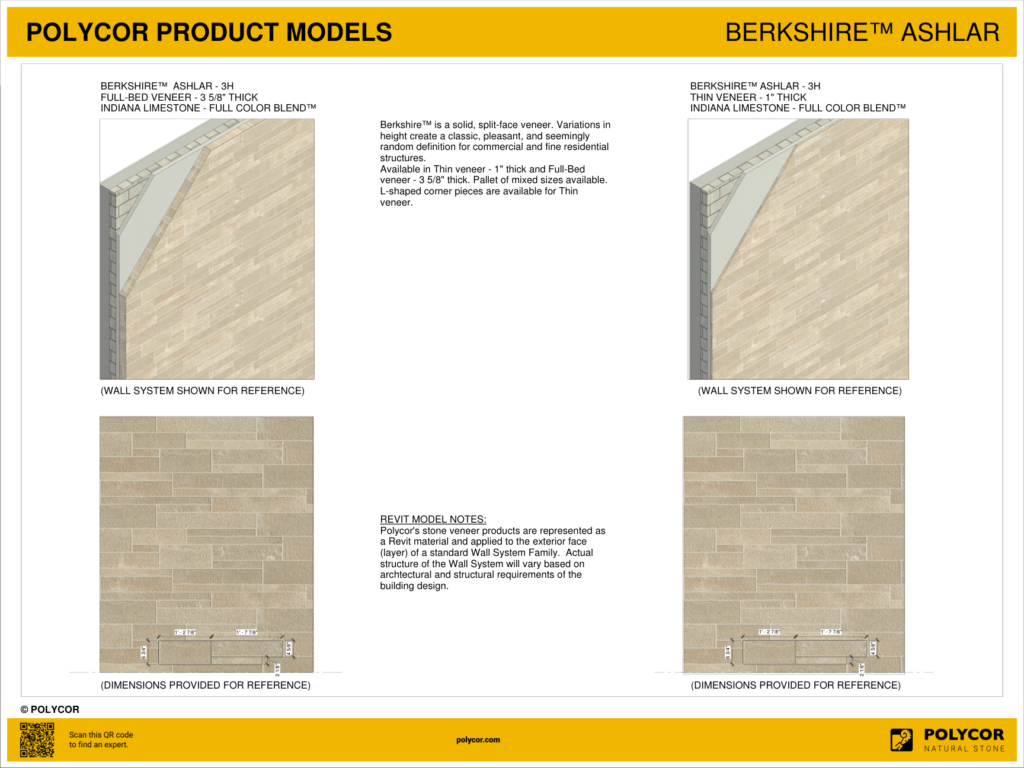

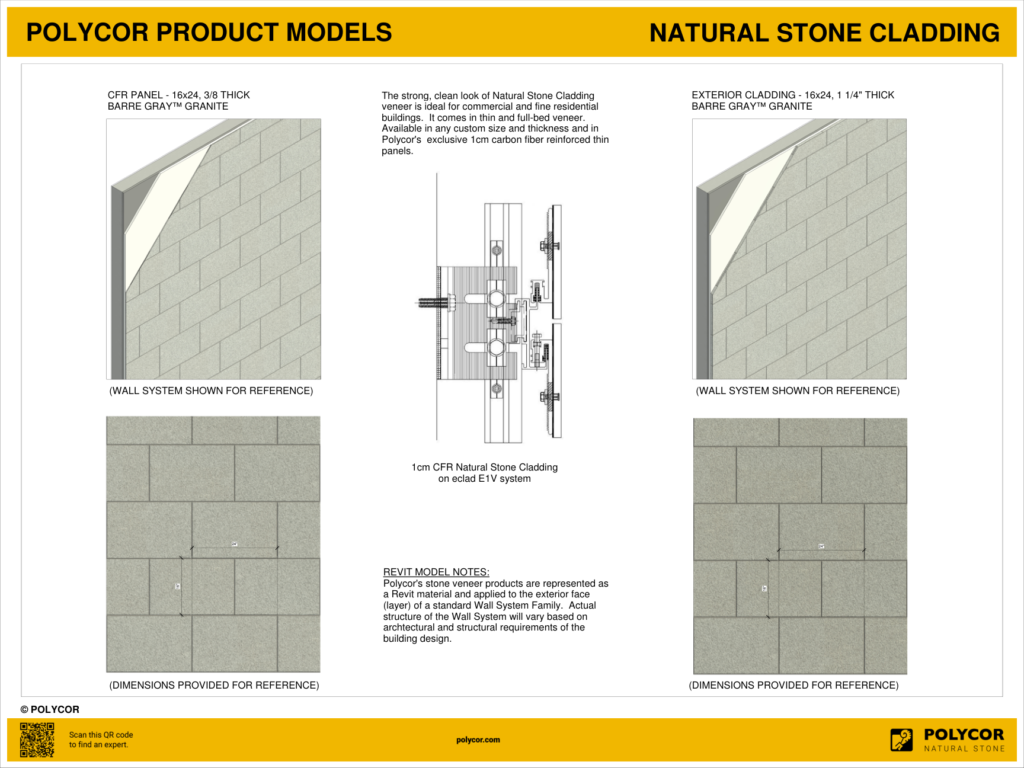

Polycor’s stone veneer products are represented as a Revit material and applied to the exterior face (layer) of a standard Wall System Family. Actual structure of the Wall System will vary based on architectural and structural requirements of the building design.

REVIT MODEL NOTES:

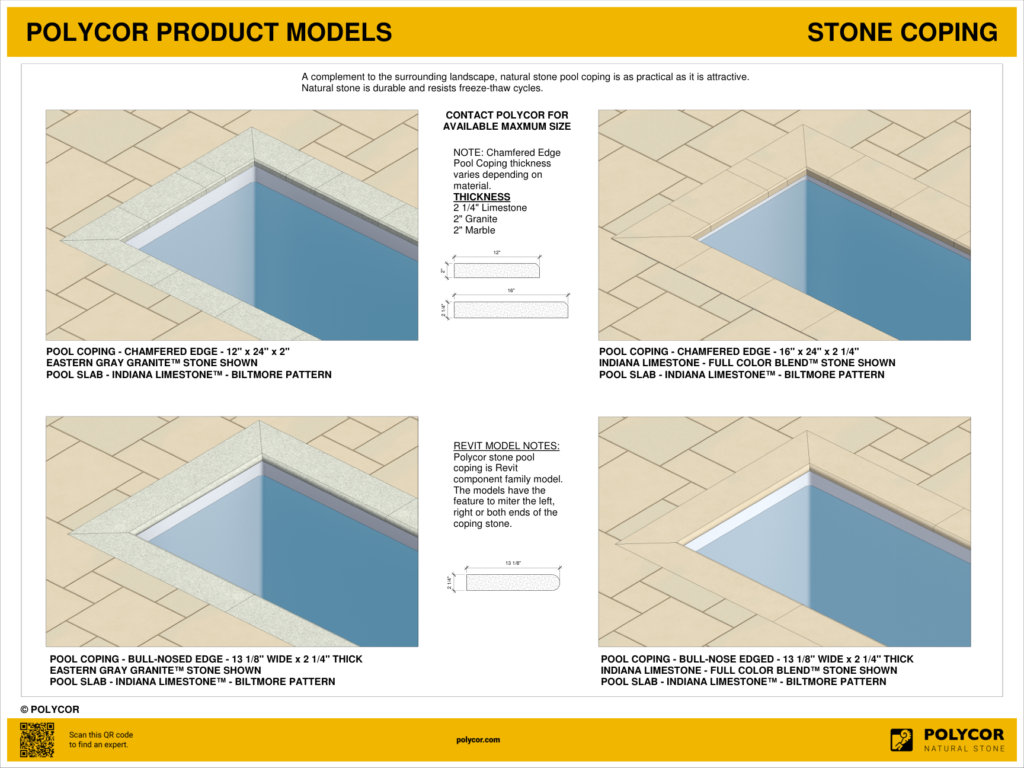

Polycor stone pool coping is a Revit component family model. The models have the feature to miter the left, right or both ends of the coping stone.

REVIT MODEL NOTES:
Polycor’s stone countertop is a Revit component family model that may be placed on casework/millwork and sized to fit (length and width).

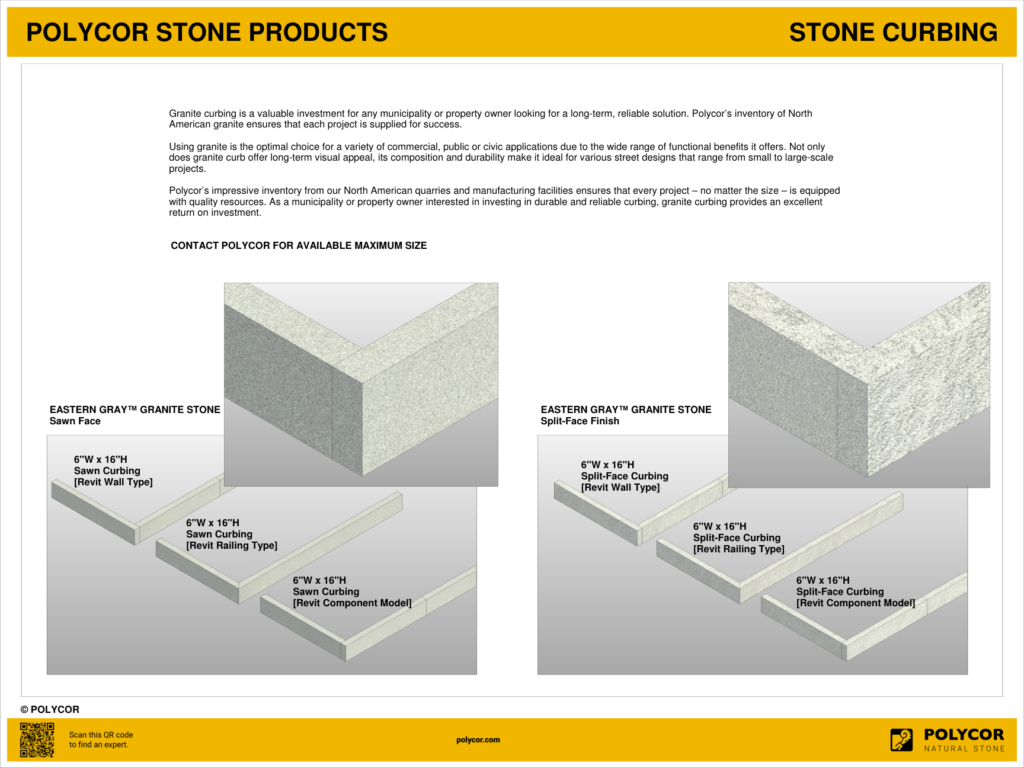

Granite curbing is a valuable investment for any municipality or property owner looking for a long-term, reliable solution. Polycor’s inventory of North
American granite ensures that each project is supplied for success.

Using granite is the optimal choice for a variety of commercial, public or civic applications due to the wide range of functional benefits it offers. Not only
does granite curb offer long-term visual appeal, its composition and durability make it ideal for various street designs that range from small to large-scale
projects.

REVIT MODEL NOTES:
Polycor’s stone flooring products are represented as a Revit material and applied to the finish face (layer) of a standard Floor System Family. Actual structure of the Floor System will vary based on architectural and structural requirements of the building design.

REVIT MODEL NOTES:
Polycor’s stone paver products are represented as a Revit material and applied to the finish face (layer) of a standard Floor System Family. Actual structure of the Floor System used to represent pavers will vary based on architectural and structural requirements of the building design.

REVIT MODEL NOTES:

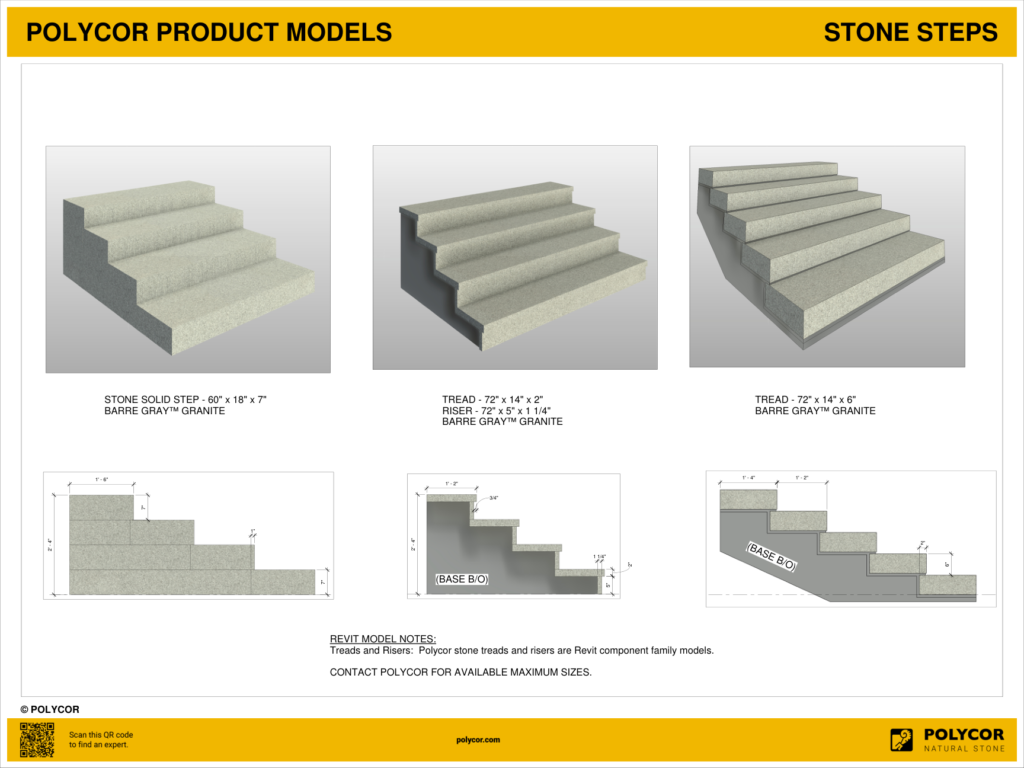

Treads and Risers: Polycor stone treads and risers are Revit component family models.

REVIT MODEL NOTES:

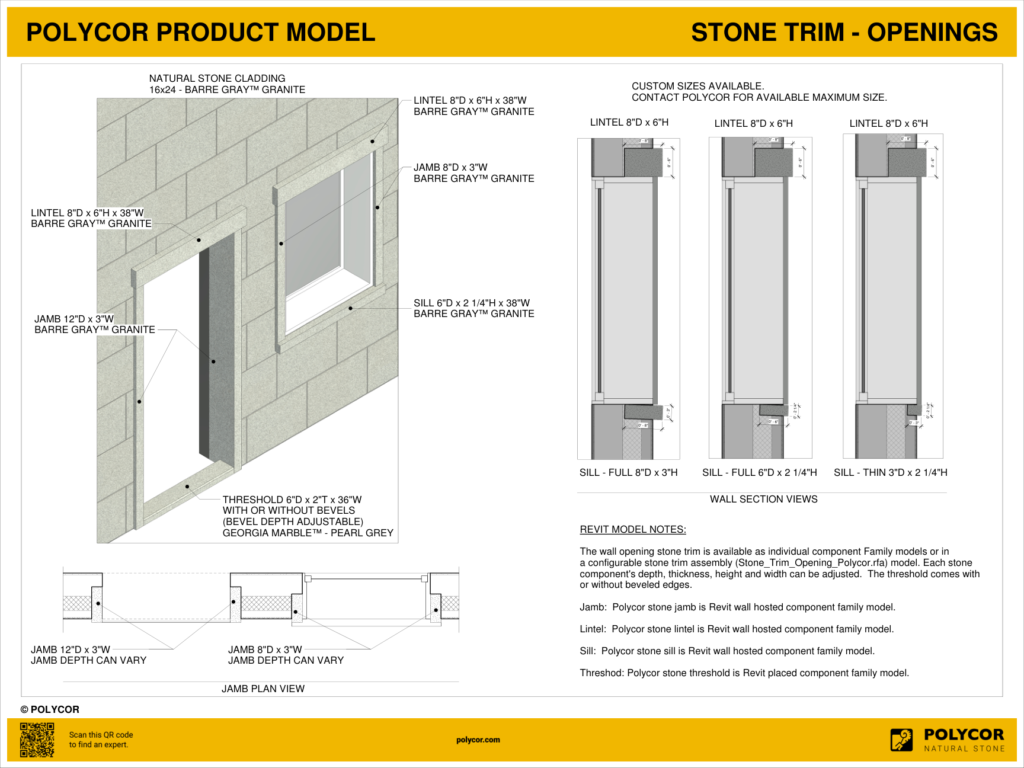

The wall opening stone trim is available as individual component Family models or in a configurable stone trim assembly (Stone_Trim_Opening_Polycor.rfa) model. Each stone component’s depth, thickness, height and width can be adjusted. The threshold comes with or without beveled edges.

REVIT MODEL NOTES:
Polycor’s stone slab products are represented as a Revit material and applied to the interior face (layer) of a standard Wall System Family. Actual structure of the Wall System will vary based on architectural and structural requirements of the building design.
